Toyota Tacoma Bump Stop Kit Upgrade: Why Your Stock Bump Stops Are Holding You Back
If you drive a Toyota Tacoma, 4Runner, Tundra, or FJ Cruiser off-road, you already know the feeling: that jarring, teeth-rattling bottom-out when your suspension runs out of travel. You might have upgraded your shocks, added a lift kit, or gone up in tire size — and still hit that same wall at the end of the stroke.
The problem is almost always the bump stop. More specifically, it’s the stock bump that stops a performance suspension from doing its job.
This guide explains what bump stops actually do, why OEM bump stops are a weak link on lifted or modified Toyota trucks, and how the Ride Shocks Front Bump Stop Kit — available exclusively through AccuTune Offroad — solves the problem for 2005–2024 Toyota platforms.
What Are Bump Stops? (And Why They Matter More Than You Think)
A bump stop is the final layer of protection in your suspension system. When your suspension reaches full compression, the bump stop engages to absorb remaining impact energy and prevent hard metal-to-metal contact between suspension components.
Think of bump stops as the last line of defense. Your shocks handle the majority of suspension movement, but bump stops take over at the extreme end of travel — the moments when everything else has been used up.
Without a proper bump stop, even the best shocks can be overwhelmed at full compression. The result is that jarring, harsh bottom-out that feels like hitting a wall instead of a progressive end to suspension travel.
For optimal performance off-road, consider investing in a Toyota Tacoma bump stop kit to enhance your suspension system.
What bump stops actually do:
- Absorb remaining impact energy at full suspension compression
- Prevent hard metal-to-metal contact between suspension components
- Protect your shocks and internal valving from damage
- Reduce g-out felt by vehicle occupants on big hits
- Prevent tires from rubbing against the chassis or body
- Extend the life of your entire suspension system
Why OEM Bump Stops Are Not Enough for Modified Toyota Trucks
Stock bump stops on the Tacoma, 4Runner, Tundra, and FJ Cruiser are made of hard rubber. They were engineered for a specific ride height, stock tire size, and a defined range of suspension travel. The moment you change any of those variables, the OEM bump stop becomes a liability.
Common issues with stock Toyota bump stops:
- Hard rubber construction — very stiff and harsh when bottoming out
- Fixed height — cannot be adjusted for different lift heights or tire sizes
- Engage too early or too abruptly, degrading everyday ride quality
- Not designed for the increased loads of overland builds, larger tires, or performance driving
- Provide no progressive engagement — it’s either nothing or full impact
If you’re running larger tires, a lift kit, or doing any amount of spirited off-road driving, your stock bump stops are almost certainly making your ride worse at the end of travel.

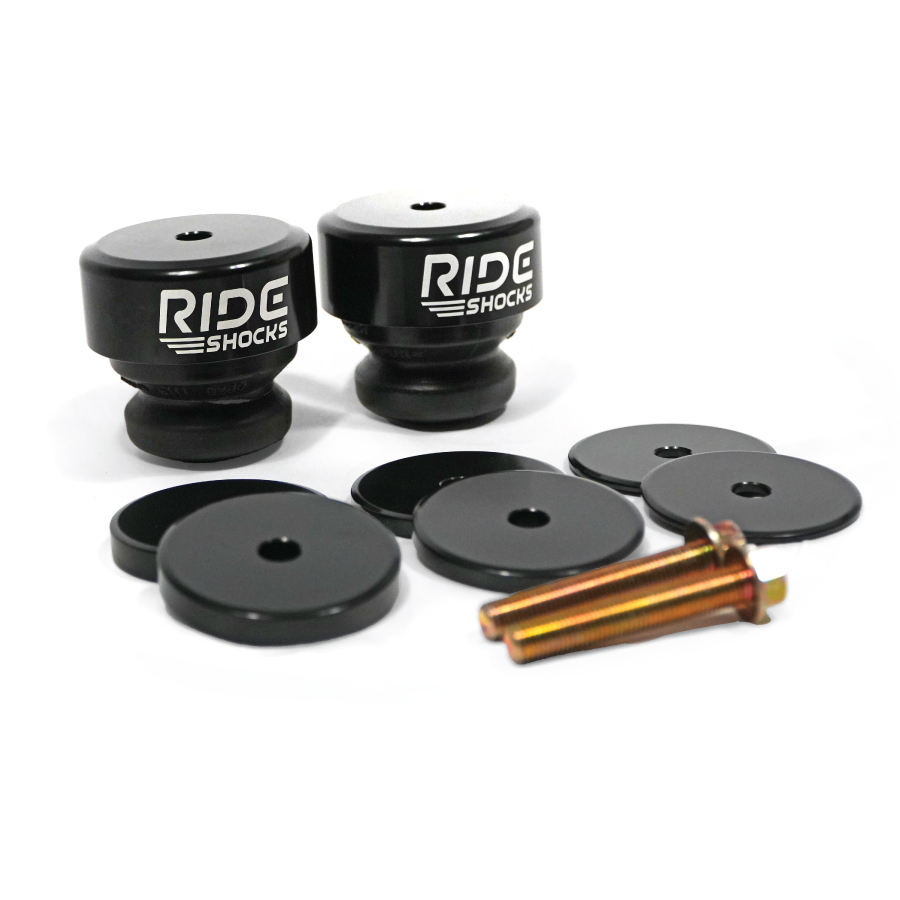

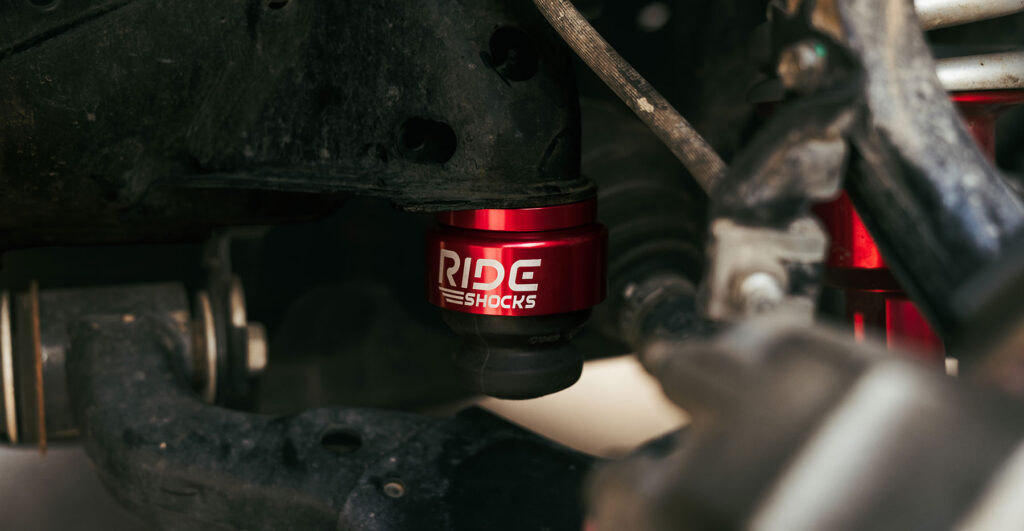

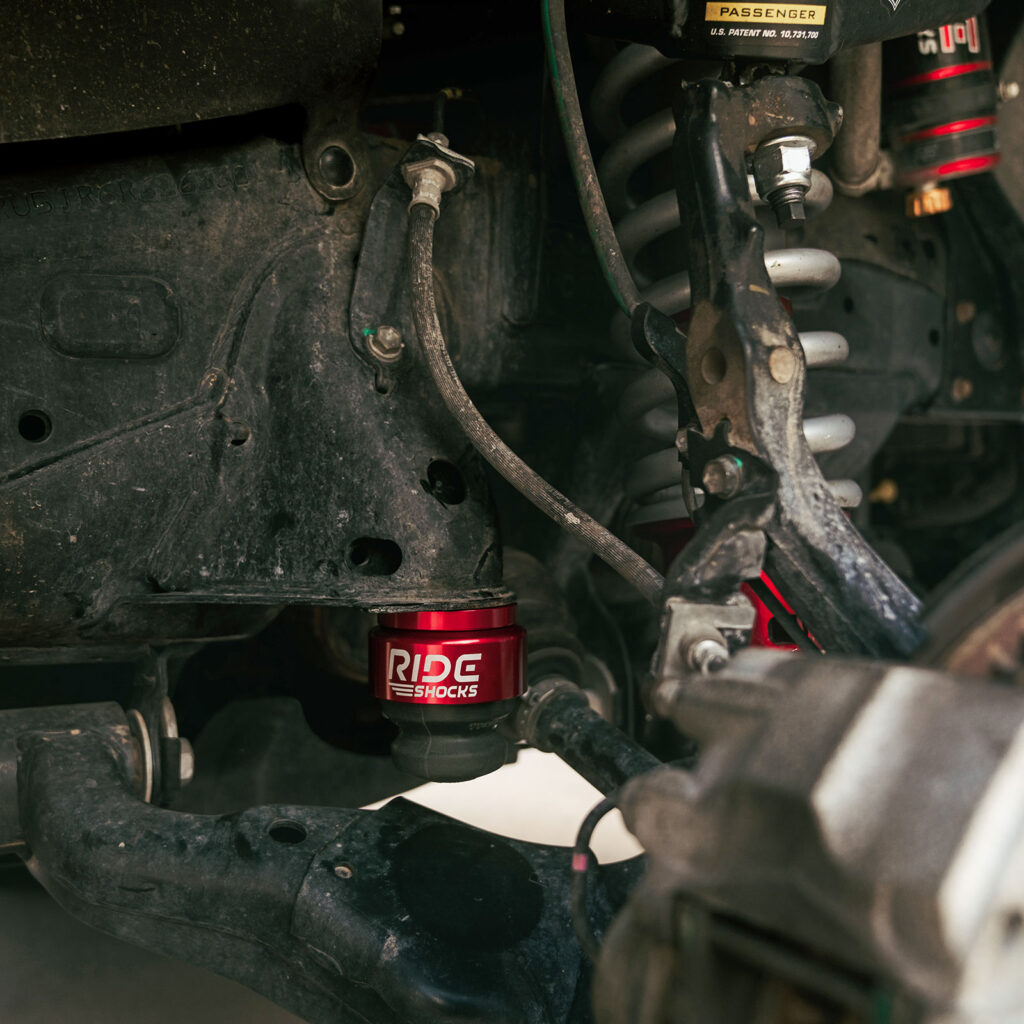

Ride Shocks Front Bump Stop Kit: Built for Toyota Platforms
The Ride Shocks Front Bump Stop Kit is an adjustable-height foam bump stop system with integrated aluminium spacers. It was developed specifically for Toyota trucks and SUVs, with a one-size-fits-all design that adjusts via spacers to accommodate different tire sizes and lift configurations.
Price: $149.95
Available in: Red or Black
Vehicle Fitment
| Platform | Years |
| Toyota Tacoma | 2005–2023 |
| Toyota 4Runner | 2003–2024 |
| Toyota Tundra | 2022+ |
| Toyota FJ Cruiser | 2007–2014 |
| Lexus GX460 & GX470 | 2003–2023 |
Key Features and How They Work
1. Adjustable Height — One Kit Fits All Configurations
Unlike fixed bump stops that are designed for a single ride height, the Ride Shocks kit uses a set of aluminum spacers (included) to dial in the engagement point for your specific setup. This allows one kit to properly serve different tire sizes across the same platform.
The spacers allow you to set exactly where in the suspension travel the bump stop engages — earlier for larger tires that need more clearance, later for builds focused on maximum up-travel.
Spacer requirements by tire size and platform: (Guide for reference. Multiple tire size fitments outside this chart)
| Tire Size | 05–15 Tacoma | 16–23 Tacoma | 03–24 4Runner | 22–24 Tundra |
| 285/70 R17 Wheel: 9″ Wide, 4.5″ Backspacing | 1/4″, 3/8″ | 1/4″, 3/8″ | 1/8″, 3/8″ | N/A |
| 35 x 12.50 R17 Wheel: 7.5″ Wide +25 offset | 1/8″, 1/4″, 3/8″ | N/A | N/A | 1/8″ |
| 37 x 12.50 R17 Wheel: 8.5″ Wide +25 offset | N/A | N/A | N/A | 1/8″, 1/4″, 3/8″ |
2. High-Quality Foam for Progressive Engagement

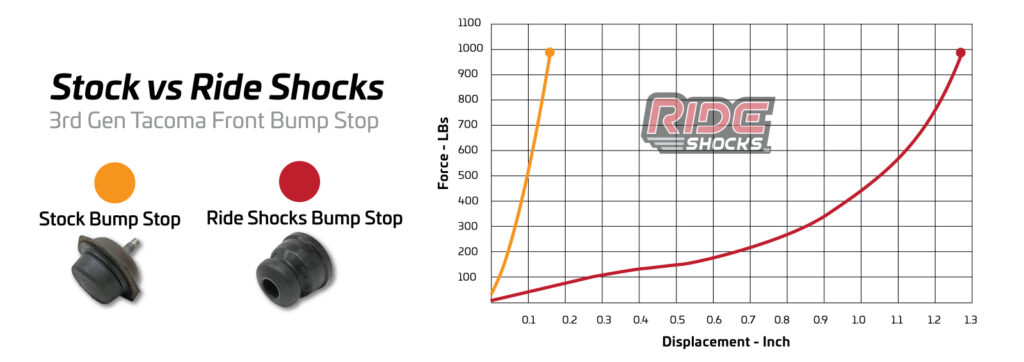

The bump stop itself is a high-quality foam element — not hard rubber like the OEM unit. As the suspension compresses into it, the foam gradually builds resistance rather than hitting a sudden wall. This progressive engagement is what makes the bottom-out feel seamless rather than jarring.
Significant engineering work went into tuning the foam compound, the cup geometry, and the engagement point to get exactly the right stiffness curve. The result is a bottom-out that is smooth enough that you may not even notice it happened — which is exactly the goal.
Key benefit: Significant increases in off-road speed and comfort — even with less up-travel than OEM. The tuned engagement point and foam quality make up the difference.
3. Metal Cup with Hard Stop
The metal cup is what separates this design from simple foam bump stop replacements currently on the market. The foam compresses progressively into the cup, and the cup itself provides a final solid hard stop at full compression. This prevents damage to other suspension components when the suspension bottoms out completely.
The solid metal-to-metal hard stop also gives drivers a repeatable, predictable limit. You always know exactly where the tire stops — which translates directly into more confidence, more up-travel use, and better overall ride quality.
More confidence = more up travel used = better ride quality. The predictable hard stop removes the guesswork from your suspension’s end-of-travel behavior.
How the System Works: Foam, Cup, and Hard Stop Together
The Ride Shocks bump stop kit functions as a two-stage end-of-travel system:
- Stage 1 — Progressive foam engagement: As the suspension compresses, the foam bump stop begins engaging gradually, building resistance smoothly and progressively. Bump force increases as the foam compresses further into the cup.
- Stage 2 — Metal cup hard stop: When the foam is fully compressed, the metal cup provides the final solid stop, preventing damage to other suspension components and giving the driver a consistent, predictable end-of-travel limit.
This two-stage behavior reduces the g-out sensation felt by occupants on big hits, protects suspension components, and makes the overall ride quality dramatically smoother at the end of travel compared to the OEM hard rubber bump stop.
Signs You Need to Upgrade Your Bump Stops
If any of these describe your current driving experience, your bump stops are likely the problem:
- Harsh, jarring bottom-out when hitting big bumps or whoops
- Clunking or banging sound at full suspension compression
- Tires rubbing the body or chassis when fully compressed
- Unpredictable handling feel at the end of suspension travel
- You recently went up in tire size and didn’t adjust your bump stops
- You added a lift kit without addressing the bump stop engagement point
- Your ride feels worse off-road than it did on stock suspension
These are all symptoms of a bump stop that is either engaging too late, too early, or too abruptly for your current suspension setup.
Why Ride Shocks?
AccuTune Offroad is the exclusive source for the Ride Shocks Front Bump Stop Kit. We carry these kits because we’ve tested them on the platforms they’re built for, and the results are consistent: better off-road speed, better comfort, and a more predictable suspension at the limits.
Our team can help you select the correct spacer configuration for your tire size and lift height, and pair the bump stop kit with the right shock setup if you’re doing a broader suspension build.
FAQ: Ride Shocks Front Bump Stop Kit
What vehicles does the Ride Shocks bump stop kit fit?
The kit fits 2005–2023 Toyota Tacoma, 2003–2024 Toyota 4Runner, 2022+ Toyota Tundra, 2007–2014 Toyota FJ Cruiser, and 2003–2023 Lexus GX460 and GX470.
What is the price of the Ride Shocks Front Bump Stop Kit?
The kit is $149.95 and is available in red or black anodized aluminum.
How is the Ride Shocks kit adjustable?

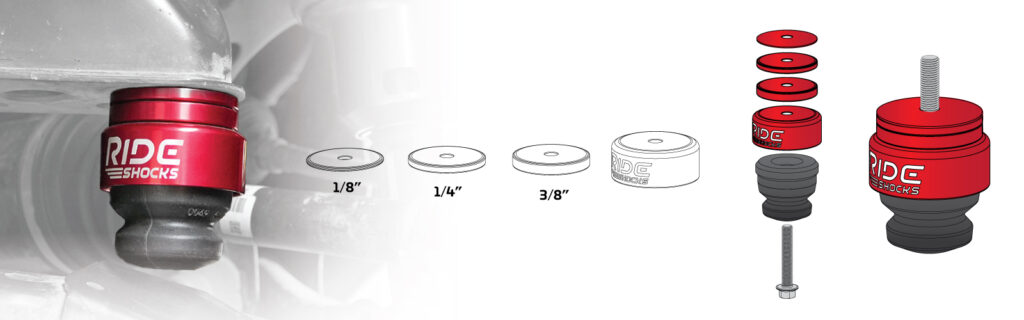

The kit includes aluminum spacers in multiple thicknesses (1/8″, 1/4″, and 3/8″). You stack spacers to set the engagement height of the bump stop relative to your tire size and ride height, preventing tire rub while maximizing up-travel.
Why are foam bump stops better than hard rubber OEM bump stops?
OEM bump stops are hard rubber and engage abruptly, creating a jarring impact at full compression. High-quality foam compresses progressively, building resistance gradually so the bottom-out feels seamless rather than sudden. This is especially noticeable at speed off-road.
What does the metal cup do?
The metal cup provides a final solid hard stop once the foam has fully compressed. This prevents damage to other suspension components and gives drivers a consistent, repeatable limit at full compression — so you always know where the suspension ends.
Will this work with my lift kit?
Yes. In fact, a lift kit is one of the main reasons to upgrade your bump stops. When you add lift height, the OEM bump stop engagement point changes, and it often results in either too-early or too-late contact. The adjustable spacer system lets you dial in the correct engagement point for your specific lift and tire combination.
Do I need this kit if I’m already running aftermarket shocks?
Yes. Aftermarket shocks handle mid-stroke damping, but they cannot compensate for a poorly tuned bump stop at the end of travel. The bump stop and shock work together as a system. Upgrading shocks without addressing the bump stop leaves performance on the table.

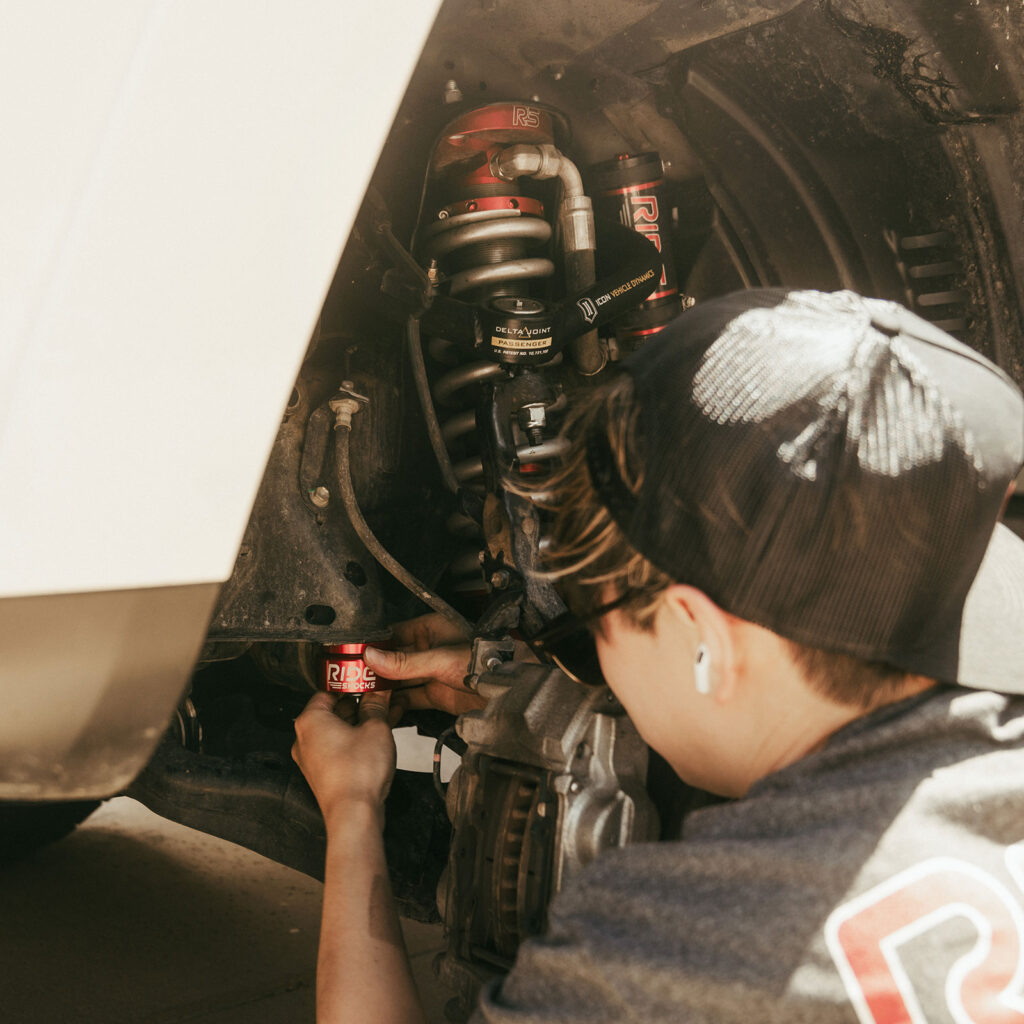

Can I install this kit myself?
The kit is straightforward to install on Toyota platforms. The entire process takes roughly 10 minutes with the proper tools. If you’re unsure which spacer combination to use for your specific tire size and lift, the AccuTune team can walk you through the selection.
